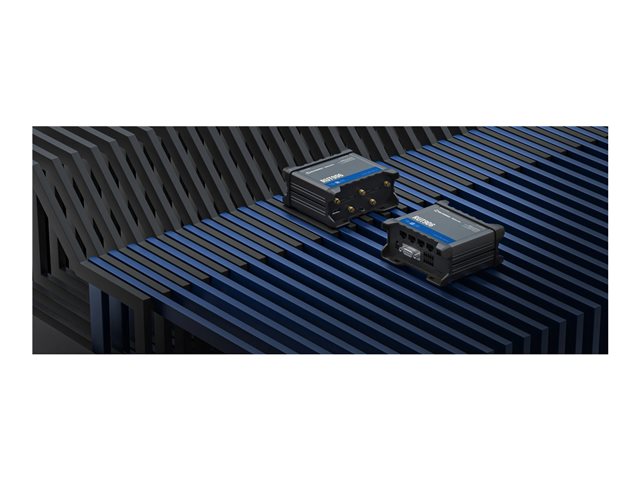

Reliable connectivityThe Teltonika RUT906 supports a variety of cellular protocols including FDD LTE and TDD LTE, ensuring dependable connectivity in various network conditions. Designed for mobile broadband, it works with multiple cellular bands, providing flexibility for users in different regions.Enhanced performanceWith a maximum transfer rate of 150 Mbps, the RUT906 delivers fast and efficient data transmission. The device features load balancing and quality of service (QoS) capabilities, allowing for optimized performance across connected devices.Versatile networking optionsThis wireless router is equipped with multiple interfaces, including RS-232, RS-485, and USB 2.0, catering to various connectivity requirements. Additionally, it includes an integrated 3-port switch for simplified device connection.Seamless remote managementThe RUT906 offers extensive remote management capabilities through various protocols such as SNMP and SSH, allowing users to effectively monitor and manage their networks from a distance.Rugged constructionBuilt to endure, the RUT906 features a minimum operating temperature of -40°C and a maximum of 75°C, along with an IP30 rating, making it suitable for deployment in challenging environmental conditions.
Спецификации
- ManufacturerTELTONIKA NETWORKS
- Manufacturer Part NoRUT906000000
- Device TypeWireless router - 3-port switch (integrated)
- Enclosure TypeDIN rail mountable
- Connectivity TechnologyWired, wireless
- Data Link ProtocolIEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Ethernet, Fast Ethernet, RS-232, RS-485
- Network / Transport ProtocolTCP, UDP, IPv4, IPv6, NTP, DNS, SFTP, FTP, ARP, PPPoE, DHCP, Telnet, PPTP, L2TPv3, WireGuard, OpenVPN
- Encryption AlgorithmWPA3-EAP, WPA3-SAE, WPA2-Enterprise, PEAP, WPA2-PSK, WEP, AES-CCMP, TKIP, SSL, TLS, DES, DESX, IKEv1, IKEv2, 128-bit AES-CBC, 192-bit AES-CBC, 256-bit AES-CBC, CAST5
- FeaturesRSSI support, USSD support, white list, black list, band management, auto APN, bridge mode, Access Point operational mode, Auto Cipher modes, client separation, Stealth Mode, Fast Roaming, MAC address filtering, Captive Portal, RADIUS Server, static routing, policy based routing, WOL, port forwarding, DHCP relay, load balancing, QoS, SQM, SSHFS support, auto-uplink (auto MDI/MDI-X), PSK, IPSec NAT-T, DDos attack prevention, port scan prevention, VLAN support, mobile quota control, Web Filtering, GRE tunneling, Modbus compatible, DNP3 outstation, DLMS support, FOTA, SNMP trap, Teltonika RMS, GPS/GLONASS/Galileo/BeiDou/QZSS support, NTRIP, passive PoE supported, automated failover
- Compliant StandardsIEEE 802.11r, UPnP, IEEE 802.11e, IEEE 802.3, IEEE 802.3u, IP30, UKCA, RCM, CB, E Mark, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 301 489-19 V2.2.0, EN 301 489-52 V1.2.1, EN 61000-4-2:2009, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014, EN IEC 61000-4-11:2020, EN 61000-4-3:2020, EN 62311, IEC 62368-1:2018, EN 301 908-1, EN 301 908-2, EN 301 908-13, EN 300 328
- Status IndicatorsConnection status, signal strength, Ethernet link/activity, power
- Mobile Communication ProtocolFDD LTE, TDD LTE
- InterfacesWAN: 1 x 10Base-T/100Base-TX - RJ-45 LAN: 3 x 10Base-T/100Base-TX - RJ-45 Serial: 1 x RS-232 - 9 pin D-Sub (DB-9) Serial: 1 x RS-485 USB 2.0: 1 x 4 pin USB Type A Antenna: 2 x SMA - LTE Antenna: 2 x RP-SMA - Wi-Fi Antenna: 1 x SMA - GNSS aerial Input / output
- Expansion Slots2 (total) / 2 (free) x Mini-SIM
- AerialExternal detachable
- Antenna Qty5
- Power DeviceExternal power adapter - 9 watt
- Width10.95 cm
- Depth10 cm
- Height5 cm
- Weight295 g
- Min Operating Temperature-40 °C
- Max Operating Temperature75 °C
- Humidity Range Operating10 - 90% (non-condensing)
- Warranty24 months
- Frequency Band2.4 GHz
- Routing ProtocolBGP, OSPFv2, RIP-1, RIP-2, NHRP, EIGRP, VRRP
- Remote Management ProtocolICMP, HTTP, HTTPS, SMTP, SSH, SMPP, SMNP, MQTT, SSH-2, SNMP 1, SNMP 2, SNMP 3, TR-069, BACnet, Kinesis
- Authentication MethodRadio Service Set ID (SSID), RADIUS, X.509 certificates, TACACS+
- OS ProvidedRutOS
- Generation4G, 2G, 3G
- Cellular BandLTE B1, LTE B3, LTE B7, LTE B8, LTE B20, LTE B28, LTE B38, LTE B40, LTE B41
- Max Transfer Rate150 Mbps
- LocalisationEurope (excluding Belarus, Russia), Middle East, Africa, Thailand
- CapacitySimultaneous connections: 100
- Processor1 x MediaTek MIPS 24Kec 580 MHz
- Cables Included1 x network cable - 1.5 m
- Included AccessoriesPower adapter (EU), 2 x LTE aerials, 2 x WiFi aerials, GNSS aerial, RS-485 connector, I/O connector, SIM card adapter kit
- Internet of Things (IoT) CompatibleYes
- Built-in DevicesGNSS receiver
