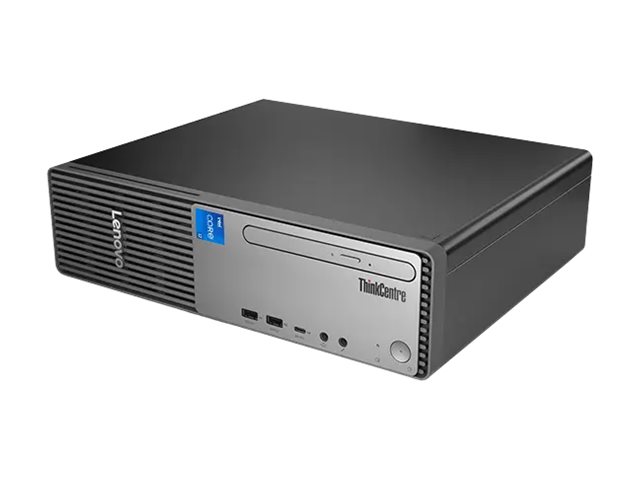

Robust processing powerThe Lenovo ThinkCentre neo 30s Gen 5 is equipped with an Intel Core i7-13620H processor featuring 10 cores and a max turbo speed of 4.9 GHz, ensuring smooth operation for intensive applications.Ample storage capacityWith a 512 GB PCI Express NVMe SSD, this desktop provides fast read and write speeds, which significantly enhance performance and responsiveness.Advanced audio experienceIntegrated with high definition audio using a Realtek ALC623-CG codec, the system offers clear sound quality for movies, music, and calls.Versatile connectivity optionsFeaturing multiple ports including HDMI, USB-C 3.2, and Gigabit Ethernet, the system accommodates various devices and displays for enhanced productivity.Compact form factorThe small form factor chassis of the ThinkCentre neo 30s Gen 5 allows for convenient placement, making it perfect for home offices or tight workspaces.
Спецификации
- ПроцесорIntel Core i7 (13th Gen) 13620H
- RAM памет16 GB (installed) / 64 GB (max)
- Тип паметтаDDR5
- SSD1 x 512 GB
- ВидеоIntel UHD Graphics Shared Video Memory (UMA)
- КутияSFF
- Операционна системаNo operating system
- ManufacturerLENOVO
- Manufacturer Part No13DK003DBL
- TypePersonal computer
- Built-in DevicesSpeaker
- ColourBlack (chassis), grey (bezel)
- LocalisationLanguage: Bulgarian
- Max Turbo Speed4.9 GHz (P-core) / 3.6 GHz (E-core)
- Number of Cores10-core
- CPU Qty1
- Max CPU Qty1
- Installed Size24 MB
- Cache Per Processor24 MB
- Effective Memory Speed5200 MT/s
- Rated Memory Speed5200 MT/s
- Form FactorSO-DIMM 262-pin
- Slots2 (Total) / 1 (empty)
- Configuration Features1 x 16 GB
- Hard Drive / TypeSSD - M.2 2280
- Interface TypePCI Express 4.0 x4
- FeaturesDual channel memory architecture
- Optical Storage / TypeNo optical drive
- Monitor TypeNone.
- Input Device / TypeMouse, keyboard
- Keyboard NameLenovo Calliope Keyboard
- Localization & LayoutBulgarian
- Mouse NameLenovo Calliope Mouse
- Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
- Interfaces1 x USB-C 3.2 Gen 1 (1 front) (15W charging) 4 x USB 3.2 Gen 1 (2 front, 2 rear) (one of them supports SmartPower On) 1 x headphones/microphone (1 front) 1 x microphone (1 front) 2 x USB 2.0 (2 rear) 1 x HDMI (1 rear) (TMDS compatible) 1 x VGA (1 rear) 1 x LAN (1 rear) 1 x audio line-out (1 rear)
- Device TypePower supply
- Power Provided180 watt
- Service & SupportBase warranty - 1 year - pick-up and return Extended warranty - 3 years - pick-up and return
- Width92.5 cm
- Depth29.17 cm
- Height33.95 cm
- Weight4.63 kg
- Warranty36 months
- EPEAT CompliantEPEAT Silver
- Bundled Services3 Years Lenovo Courier/Carry-in
- Embedded SecurityFirmware Trusted Platform Module (TPM 2.0) Security Chip
- Clock Speed2.4 GHz (P-core) / 1.8 GHz (E-core)
- Hard Drive / FeaturesTCG Opal Encryption, NVM Express (NVMe)
- Compliant StandardsHigh Definition Audio
- InterfaceUSB
- Mouse / InterfaceUSB
- Theft/Intrusion ProtectionSecurity lock slot (cable lock sold separately), padlock loop
- Security Slot TypeKensington security slot
- Voltage RequiredAC 100-240 V (50/60 Hz)
- Efficiency85%
- CPU modelIntel Core™ i7-13620H, 10C (6P + 4E) / 16T, P-core up to 4.9GHz, E-core up to 3.6GHz, 24MB Intel® Smart Cache
- ColorChassis: Black, Bezel: Grey
- Power supply180W 85%
- AudioHigh Definition (HD) Audio, Realtek® ALC623-CG codec, Speakers:1Wx1
- SecurityFirmware TPM 2.0 integrated in SoC; Kensington Security Slot™; Padlock Loop
- CertificationsTCO Certified
- Mechanical designSmall Form Factor (SFF), 8.2L Chassis, Low-Profile PCIe Expansion
- Vendor_urlhttps://psref.lenovo.com/detail/ThinkCentre_neo_30s_Gen_5?M=13DK003DBL
- ModelLenovo ThinkCentre neo 30s Gen 5
- Memory size16GB
- GraphicsIntegrated Intel® UHD Graphics
- Disk specificationsSSD M.2 2280 PCIe® 4.0x4 NVMe® Opal
- Interfaces/PortsFront Ports:; 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging; 2x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm); Rear Ports:; 2x USB-A (Hi-Speed USB / USB 2.0); 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On; 1x HDMI® 2.1 TMDS; 1x VGA; 1x Ethernet (RJ-45); 1x line-out (3.5mm)
- Expansion slotsTwo DDR5 SODIMM slots, dual-channel capable; One PCIe® 4.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm; One PCIe® 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm; Three M.2 slots (one for WLAN, two for SSD)
- OSNone
- AccessoriesKeyboard: USB Calliope Keyboard, Black, Bulgarian; Mouse: USB Calliope Mouse, Black
- Dimensions92.5 x 291.7 x 339.5 mm
- Part number / Product code13DK003DBL
- MainboardLenovo Proprietary System Board; Exact Model Not Specified
- MemoryMax Memory: Up to 64GB DDR5-5200
