Efficient processing powerThe Intel Core i5-13420H processor, with 8 cores and a max turbo speed of 4.6 GHz, allows users to run demanding applications and multitask smoothly.Spacious and fast storageAn M.2 2280 PCI Express SSD is installed, providing fast data access times and efficient loading of applications and files.Improved audio experienceEquipped with a Realtek ALC623-CG integrated audio codec, this desktop supports high-definition audio for a rich sound quality during multimedia playback.Robust connectivity optionsIncludes multiple ports such as USB-C 3.2 Gen 1, HDMI, and VGA, allowing seamless connections to various devices and peripherals.Enhanced security measuresFeatures like a Kensington security slot and a padlock loop provide options for securing the system against theft, ensuring data integrity and safety.
Спецификации
- ПроцесорIntel Core i5 (13th Gen) 13420H
- RAM памет16 GB (installed) / 64 GB (max)
- Тип паметтаDDR5
- SSD1 x 512 GB
- ВидеоIntel UHD Graphics Shared Video Memory (UMA)
- КутияSFF
- Операционна системаNo operating system
- ManufacturerLENOVO
- Manufacturer Part No13DK003MBL
- TypePersonal computer
- Built-in DevicesSpeaker
- ColourBlack (chassis), grey (bezel)
- LocalisationLanguage: Bulgarian
- Max Turbo Speed4.6 GHz (P-core) / 3.4 GHz (E-core)
- Number of Cores8-core
- CPU Qty1
- Max CPU Qty1
- Installed Size12 MB
- Cache Per Processor12 MB
- Effective Memory Speed5200 MT/s
- Rated Memory Speed5200 MT/s
- Form FactorSO-DIMM 262-pin
- Slots2 (Total) / 1 (empty)
- Configuration Features1 x 16 GB
- Hard Drive / TypeSSD - M.2 2280
- Interface TypePCI Express 4.0 x4
- FeaturesDual channel memory architecture
- Optical Storage / TypeNo optical drive
- Monitor TypeNone.
- Input Device / TypeMouse, keyboard
- Keyboard NameLenovo Calliope Keyboard
- Localization & LayoutBulgarian
- Mouse NameLenovo Calliope Mouse
- Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
- Interfaces1 x USB-C 3.2 Gen 1 (1 front) (15W charging) 4 x USB 3.2 Gen 1 (2 front, 2 rear) (one of them supports SmartPower On) 1 x headphones/microphone (1 front) 1 x microphone (1 front) 2 x USB 2.0 (2 rear) 1 x HDMI (1 rear) (TMDS compatible) 1 x VGA (1 rear) 1 x LAN (1 rear) 1 x audio line-out (1 rear)
- Device TypePower supply
- Power Provided180 watt
- Service & SupportBase warranty - 1 year - pick-up and return Extended warranty - 3 years - pick-up and return
- Width92.5 cm
- Depth29.17 cm
- Height33.95 cm
- Weight4.63 kg
- Warranty36 months
- EPEAT CompliantEPEAT Silver
- Bundled Services3 Years Lenovo Courier/Carry-in
- Embedded SecurityFirmware Trusted Platform Module (TPM 2.0) Security Chip
- Clock Speed2.1 GHz (P-core) / 1.5 GHz (E-core)
- Hard Drive / FeaturesTCG Opal Encryption, NVM Express (NVMe)
- Compliant StandardsHigh Definition Audio
- InterfaceUSB
- Mouse / InterfaceUSB
- Theft/Intrusion ProtectionSecurity lock slot (cable lock sold separately), padlock loop
- Security Slot TypeKensington security slot
- Voltage RequiredAC 100-240 V (50/60 Hz)
- Efficiency85%
- CPU modelIntel Core™ i5-13420H, 8C (4P + 4E) / 12T, P-core up to 4.6GHz, E-core up to 3.4GHz, 12MB Intel® Smart Cache
- ColorChassis: Black, Bezel: Grey
- Power supply180W 85%
- AudioHigh Definition (HD) Audio, Realtek® ALC623-CG codec, Speakers 1Wx1
- SecurityFirmware TPM 2.0 integrated in SoC; Kensington Security Slot™; Padlock Loop
- Mechanical designSmall Form Factor (SFF), 8.2L Chassis, Low-Profile PCIe Expansion
- Vendor_urlhttps://psref.lenovo.com/detail/ThinkCentre_neo_30s_Gen_5?M=13DK003MBL

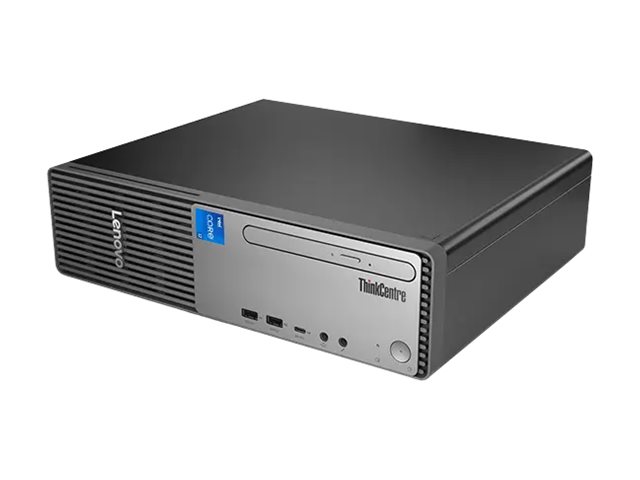

- ModelLenovo ThinkCentre neo 30s Gen 5
- Memory size16GB
- GraphicsIntegrated Intel® UHD Graphics
- Disk specificationsSSD M.2 2280 PCIe® 4.0x4 NVMe® Opal
- Interfaces/PortsFront Ports:; 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging; 2x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm); Rear Ports:; 2x USB-A (Hi-Speed USB / USB 2.0); 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On; 1x HDMI® 2.1 TMDS; 1x VGA; 1x Ethernet (RJ-45); 1x line-out (3.5mm)
- Expansion slotsTwo DDR5 SODIMM slots, dual-channel capable; One PCIe® 4.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm; One PCIe® 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm; Three M.2 slots (one for WLAN, two for SSD)
- OSNone
- AccessoriesKeyboard: USB Calliope Keyboard, Black, Bulgarian; Mouse: USB Calliope Mouse, Black
- Dimensions92.5 x 291.7 x 339.5 mm
- Part number / Product code13DK003MBL
- MainboardLenovo Proprietary System Board
