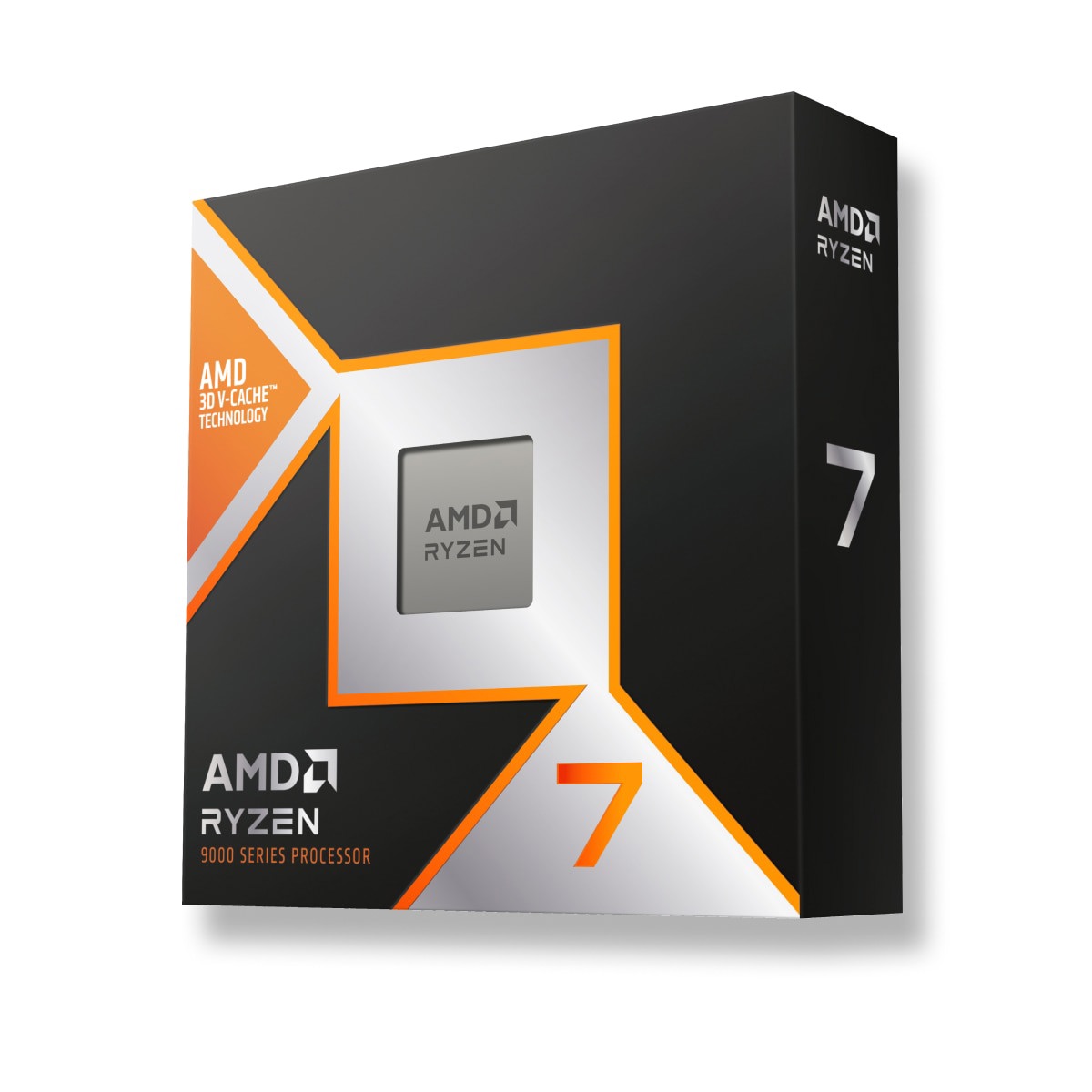

AMD Ryzen 7 9800X3D 5.2GHZ AM5 8C/16T 120W 104MB BOX

AMD Ryzen 7 9800X3D 5.2GHZ AM5 8C/16T 120W 104MB BOX - 0

AMD Ryzen 7 9800X3D 5.2GHZ AM5 8C/16T 120W 104MB BOX - 1

Спецификации

Физически ядра
8-core
Честота, GHz
4.7 GHz
Кеш, MB
96 MB
Сокет
Socket AM5
Графичен ускорител
Radeon Graphics
Manufacturer
AMD
Manufacturer Part No
100-100001084WOF
Product Type
Processor
Type / Form Factor
AMD Ryzen 7 9800X3D
Number of Threads
16 threads
Cache Memory Details
L3 - 96 MB L2 - 8 MB L1 - 640 KB
Processor Qty
1
Max Turbo Speed
5.2 GHz
Manufacturing Process
4 nm
Thermal Design Power
120 W
Thermal Specification
95 °C
PCI Express Revision
5.0
PCI Express Lanes Qty
28
Architecture Features
AMD 3D V-Cache 2nd gen technology, "Zen 5" Core Architecture, AMD EXPO Technology, AMD Ryzen Master Utility, AMD Precision Boost 2 Technology
Package Type
AMD Processor in a Box without heatsink/fan (WOF)
Warranty
36 months
EAN
730143315289
Base Frequency
2200 MHz
Other
Architecture: Zen 5;Processor Technology for CPU Cores: TSMC 4nm FinFET;Processor Technology for I/O Die: TSMC 6nm FinFET;Package Die Count 2;Unlocked for Overclocking: Yes;AMD EXPO™ Memory Overclocking Technology: Yes;Precision Boost Overdrive: Yes;Curve Optimizer Voltage Offsets: Yes;AMD Ryzen™ Master Support: Yes;CPU Boost Technology: Precision Boost 2;Recommended Cooler: Liquid cooler recommended for optimal performance;Max. Operating Temperature (Tjmax); 95°C
Vendor_url
https://www.amd.com/en/products/processors/desktops/ryzen/9000-series/amd-ryzen-7-9800x3d.html
Socket
AM5
Threads
16
Frequency
Max. Boost Clock: Up to 5.2 GHz;Base Clock: 4.7 GHz
Max. PCI Express Lanes
28 , 24 (Total/Usable)
Memory specification
System Memory Type DDR5;Memory Channels 2;Max. Memory 192 GB;System Memory Subtype UDIMM;Max Memory Speed:;2x1R DDR5-5600;2x2R DDR5-5600;4x1R DDR5-3600;4x2R DDR5-3600
Fan
Not included
Graphics
AMD Radeon™ Graphics;Core Count 2;Frequency 2200 MHz;USB Type-C® DisplayPort™ Alternate Mode Yes
TDP
120W
