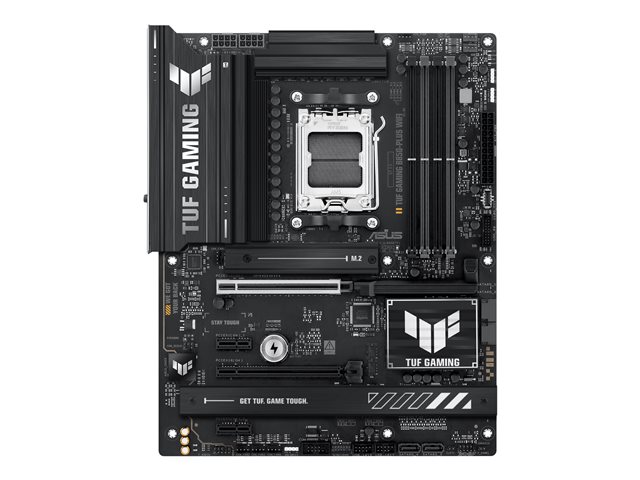

Name: ASUS TUF GAMING B850-PLUS WIFI AM5 DDR5 ATX MB 1xHDMI 1xDP 3xM.2 4xSATA
Brand: Asus
SKU: 60d264ce-7122-11f1-8ecb-0ab9880948b1
Price: 192.78 EUR
Availability: InStock

Компоненти
Дънни платки
ASUS TUF GAMING B850-PLUS WIFI AM5 DDR5 ATX MB 1xHDMI 1xDP 3xM.2 4xSATA

ASUS TUF GAMING B850-PLUS WIFI AM5 DDR5 ATX MB 1xHDMI... - 0

ASUS TUF GAMING B850-PLUS WIFI AM5 DDR5 ATX MB 1xHDMI... - 1

ASUS TUF GAMING B850-PLUS WIFI AM5 DDR5 ATX MB 1xHDMI... - 2

ASUS TUF GAMING B850-PLUS WIFI AM5 DDR5 ATX MB 1xHDMI... - 3

ASUS TUF GAMING B850-PLUS WIFI AM5 DDR5 ATX MB 1xHDMI... - 4

Нов

The ASUS TUF GAMING B850-PLUS WIFI motherboard is designed for gamers and PC enthusiasts seeking reliable performance and advanced features. With support for Ryzen 7000/8000/9000 Series processors, it provides a robust platform for building high-performance systems. The motherboard features a UEFI BIOS with ASUS EZ Flash 3, enabling easy updates and management of system settings. This motherboard supports DDR5 SDRAM with speeds up to 4000 MHz overclocked, allowing for a fast and responsive user experience. Its multiple expansion slots, including PCIe 5.0 and M.2, offer extensive upgrade potential. The integrated 2.5 Gigabit Ethernet and Wi-Fi 7 compatibility ensure smooth and speedy connectivity, making it suitable for online gaming or multimedia experiences.

€192⁷⁸ / 377⁰⁴ лв.

или

Reliable Audio PerformanceThe motherboard includes a high definition audio codec, Realtek ALC1220P, providing 8-channel audio output ensuring clear and immersive sound quality during gaming sessions.Versatile Connectivity OptionsEquipped with multiple USB ports, including USB 3.2 Gen 2 and USB-C 3.2 Gen 2x2, this motherboard allows for extensive connectivity with peripherals and external devices.Efficient Power DesignThe motherboard features a 14+2+1 phase power design and high-quality 80A power stages, ensuring stable power delivery to the CPU and RAM for maximum performance.Enhanced Thermal ManagementIt includes VRM heatsink design and ASUS ProCool technology, effectively managing the thermal output during peak loads to maintain system stability.User-Friendly FeaturesThe presence of ASUS Q-Design and M.2 Q-Latch makes it easier to install and manage hardware components, enhancing the DIY experience for builders.

Спецификации

Чипсет
AMD B850
Сокет
Socket AM5
Поддържана памет
DDR5
Гаранция, м.
36 months
Manufacturer
ASUS
Manufacturer Part No
90MB1J30-M0EAY0
Product Type
Motherboard - ATX
Max Processors Qty
1
Compatible Processors
Ryzen (supports Ryzen 7000/8000/9000 Series)
Max Size
192 GB
Bus Clock
4000 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC, on-die ECC
Registered or Buffered
Unbuffered
Features
AMD EXPO technology, dual channel memory architecture
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC1220P
Compliant Standards
High Definition Audio, DTS Sound Unbound
Network Controller
Intel I225-V
Network Interfaces
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Expansion Slots
1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x8/x4 mode) 2 x PCIe 4.0 x1 1 x PCIe 4.0 x16 2 x M.2 socket (2280 M.2 Key M slot) 1 x M.2 socket (2280/22110 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces
1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen2x2 3 x USB 3.2 Gen 2 4 x USB 3.2 Gen 1 2 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x microphone - mini-jack 1 x audio line-out - mini-jack 2 x aerial
Internal Interfaces
4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 2 - header 1 x audio - header 1 x Thunderbolt - header 1 x serial - header
Power Connectors
24-pin main power connector, 4-pin ATX12V connector, 2 x 8-pin ATX12V connectors
BIOS Type
AMI
BIOS Features
UEFI BIOS, ASUS EZ Flash 3
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
ASUS OptiMem II, SupremeFX Shielding technology, Savitech SV3H712 amplifier, BIOS FlashBack button, Water Pump Header, jack retasking, audio jack detect technology, ASUS Extreme Engine Digi+, 5K Black Metallic Capacitors, ASUS Q-Design, M.2 Q-Latch, PCIe Slot Q-Release, Q-LED, Q-DIMM, Q-Slot, VRM heatsink design, ASUS EZ DIY, BIOS FlashBack LED, ASUS ProCool, pre-mounted I/O shield, ASUS SafeSlot, ASUS SafeDIMM, ASUS Aura Sync, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, CrashFree BIOS 3, 14+2+1 Phase Power Design, 80A Power Stage, DIY Friendly Design, ASUS Enhanced Memory Profile (AEMP), ESD Guards
Included Accessories
ASUS Wi-Fi Q-antenna, 2 x M.2 rubber package, TUF GAMING sticker
Cables Included
2 x Serial ATA cable
Software Included
Sonic Radar III, Sonic Studio III, Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 4, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, MyAsus, WinRAR
Width
30.5 cm
Depth
24.4 cm
EAN
4711387781609
Miscellaneous / Compliant Standards
FCC Part 15 Class B, VCCI Class B ITE, JATE, EU REACH, EU RoHS, UKCA, DisplayPort 1.4
Vendor_url
https://uk.store.asus.com/tuf-gaming-b850-plus-wifi6133-90mb1j30-m0eay0.html
Graphics
1 x DisplayPort;1 x HDMI™ port
Chipset
AMD B850 Chipset
Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports;AMD Ryzen™ 9000 & 7000 Series Desktop Processors;M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode);M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode);AMD Ryzen™ 8000 Series Desktop Processors;M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)*;AMD B850 Chipset;M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**;4 x SATA 6Gb/s ports;* Specifications vary by CPU types.;** The PCIEX16(G4) shares bandwidth with M.2_3. The;PCIEX16(G4) will be disabled when M.2_3 runs.;AMD RAIDXpert2 Technology;Ryzen™ 9000 Series Processors: RAID 0/1/5/10;Ryzen™ 8000 Series Processors: RAID 0/1;Ryzen™ 7000 Series Processors: RAID 0/1/10
Memory type
4 x DIMM slots, max. 256GB, DDR5;Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM;Dual channel memory architecture;Supports AMD Extended Profiles for Overclocking (EXPO™);ASUS Enhanced Memory Profile (AEMP)
Rear panel I/O
1 x USB 20Gbps port (1 x USB Type-C®);3 x USB 10Gbps ports (3 x Type-A);4 x USB 5Gbps ports (4 x Type-A);2 x USB 2.0 ports (2 x Type-A);1 x DisplayPort;1 x HDMI™ port;1 x Wi-Fi module;1 x Realtek 2.5Gb Ethernet port;5 x Audio jacks;1 x BIOS FlashBack™ button
USB
Rear USB (Total 10 ports);1 x USB 20Gbps port (1 x USB Type-C®);3 x USB 10Gbps ports (3 x Type-A);4 x USB 5Gbps ports (4 x Type-A);2 x USB 2.0 ports (2 x Type-A);Front USB (Total 7 ports);1 x USB 10Gbps connector (supports USB Type-C®);1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports
Connectors
Fan and Cooling Related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;4 x 4-pin Chassis Fan headers;Power Related;1 x 24-pin Main Power connector;2 x 8-pin +12V CPU Power connectors;Storage Related;3 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 10Gbps connector (supports USB Type-C® );1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen 2 headers;1 x Clear CMOS header;1 x Chassis Intrusion header;1 x COM Port header;1 x Front Panel Audio header (F_AUDIO);1 x 10-1 pin Front System Panel header;1 x Thunderbolt™ (USB4®) header
Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC;- Impedance sense for front and rear headphone outputs;- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in);- Supports up to 32-Bit/192 kHz playback*;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers;- Audio cover;- Unique de-pop circuit
Form factor
ATX Form Factor, 30.5 cm x 24.4 cm
OS
Windows 11
Wireless
Wi-Fi 7 2x2 Wi-Fi 7 (802.11be);Supports 2.4/5/6GHz frequency band**;Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
